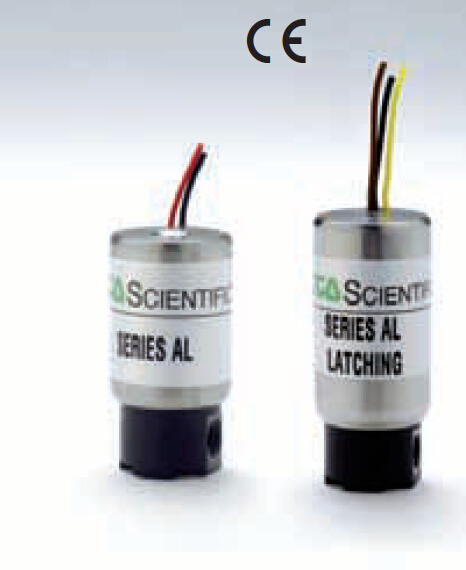

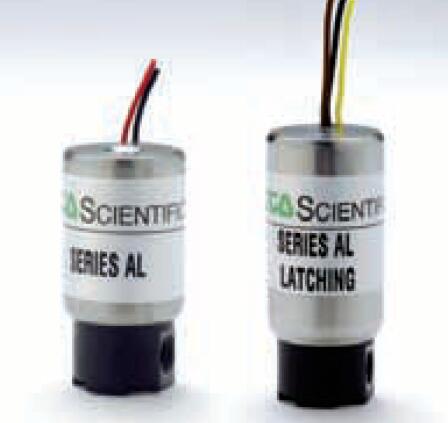

The Series AL Valves are suitable for a wide range of OEM
applications where small size, low power and long life are
a must.
有許多替代結構,包括各種電壓,
電連接器和結構材料。 ASCO Scientific也可以
為您的特定應用定制設計閥門。
有關更多信息,請聯系您當地的ASCO銷售。
? Cycle life in the hundreds of millions
? Corrosion resistant materials of construction
? In-line porting for use with standard metal or plastic
#10-32 UNF fittings
安裝支架可選安裝夾,銷5188-02(見圖)
選項?提供氧氣服務結構
?可提供無潤滑劑結構
真空等級29“Hg
替代建筑
? Magnetic latching construction available to maintain
valve position with loss of power, eliminate coil heat
rise, and extend battery life
額定電壓下響應時間?5 ms(2瓦線圈)
額定電壓?(0.65瓦線圈)~12 ms
內部容量2路NC =330μL,2路NO =310μL,3路=370μL
