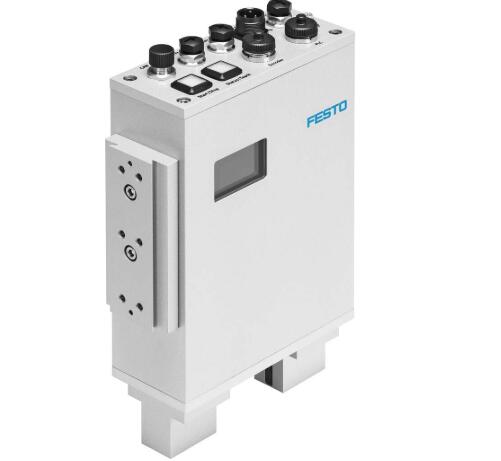

費(fèi)斯托攝像系統(tǒng) DSBC-80-25-PPVA-N3操作方式

Encoder interface

Photobiological safety Risk group 1 (low risk) to DIN EN 62471:2009-03

Vibration resistance Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Protection against direct and indirect contact PELV

Corrosion resistance class CRC1) 2

1) Corrosion resistance class CRC 2 to Festo standard 940070

Moderate corrosion stress. Internal applications in which condensation may occur.

External visible parts with primarily decorative surface requirements which are in direct contact with a normal industrial

environment.Connection type Socket

Connection technology M16x0.75

Number of pins, wires 8

Protocol RS485

Fieldbus interface

Note Not connected

Protocol CAN, not supported

Immissions/emissions

Ambient temperature [°C] –5 … +45

Storage temperature [°C] –20 … +70

Degree of protection IP64

Certification RCM mark

CE marking (see declaration of conformity) To EU EMC Directive

Ambient conditions Screened from extreme external light sources

Cleanest possible ambient air

Dry

Materials

Housing Wrought aluminium alloy

End cap Wrought aluminium alloy

Note on materials RoHS-compliant
