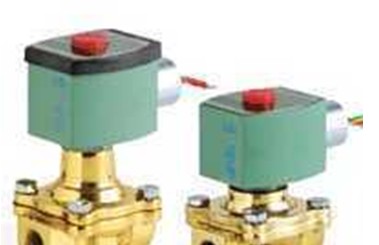

ASCO用于高壓流體的電磁閥

與流體接觸的材料

（?）確保與材料接觸的流體的兼容性經過驗證 -

主體不銹鋼，AISI 303 SS

芯管不銹鋼

和螺母不銹鋼

彈簧不銹鋼

座位黃銅

密封NBR

光盤NBR或UR

盤保持架（常開功能）PA

遮光線圈銅

電氣特性

線圈絕緣等級F

連接器鏟形插頭（電纜直徑6-10 mm）

連接器規格ISO 4400 / EN 175301-803，形式A

電氣安全I(xiàn)EC 335

電氣外殼防護等級IP65（EN 60529）

標準電壓DC（=）：24V - 48V

（其他電壓和60 Hz請求）AC（?）：24V - 48V - 115V - 230V / 50 Hz

ASCO用于高壓流體的電磁閥

Valves can also be supplied with FPM (fl uoroelastomer), EPDM (ethylene-propylene), CR (chloroprene) and PTFE seals

and discs. Use the appropriate optional suffi x letter for identifi cation

? Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE-10

?  Explosionproof enclosures for use in zones 1/21-2/22, categories 2-3 to ATEX Directive 94/9/EC (see “Explosionproof solenoids” section)

? Electrical enclosures according to “NEMA” standards are available

? Compliance with "UL", "CSA" and other local approvals available on request

? Other pipe connections are available on request

?  Plug with visual indication and peak voltage suppression or with cable length of 2m (see Solenoids, Coils & Accessories section)

ASCO用于高壓流體的電磁閥
