Body 316 Stainless Steel
Seals and Disc FKM
Core and Plugnut 430F Stainless Steel
EF8320501
EF8320511
EF8320502
EF8320512
EF8317501
EF8317511
EF8317502
EF8317512
EF8321511
EF8321512
EF8320505
EF8320515
Core Spring 302 Stainless Steel
Rider Rings PTFE
Disc-Holder and Core Guide CA

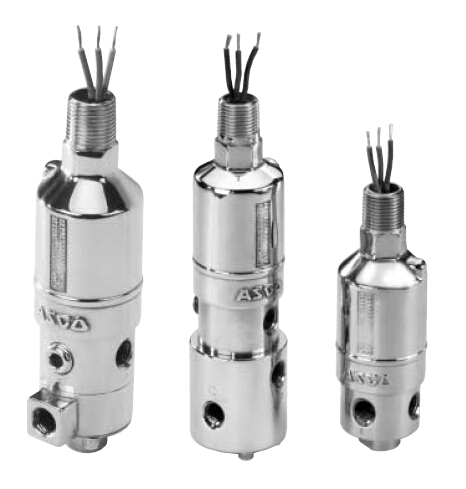

? Designed for harsh, hazardous environments, includingoffshore applications.
Standard: 316 Stainless Steel, Explosionproof and Watertight with 72" leads.
Types 1, 2, 3, 4, 4X, 6, 6P, 7, and 9, Class I, Division 1, Groups C & D.
Optional: For CENELEC approved valves with 20mm conduit connection use
prefix "EC" instead of "EF". Use prefix "ED" for 1/2" NPT conduits.
See Engineering Section under "Enclosures" for details
? Provides quick shutdown of valves and actuators.
? Low power DC for solar panels and PLC control.
? Factory-sealed leads or epoxy filled conduit connection.
? Explosionproof Types 4 and 7, Class 1, Division 1, Groups
C and D protection, or Cenelec EEx d IIB T6 with EC or
ED prefix.
? Mountable in any position
應用于嚴酷的危險的或環境,防爆型,快速關閉閥門與執行機構,
直流電壓控制,高流量,3/2,不銹鋼閥體,1/4"NPT,
電壓:12,24VDC,壓力范圍:1-10公斤(較高值)
