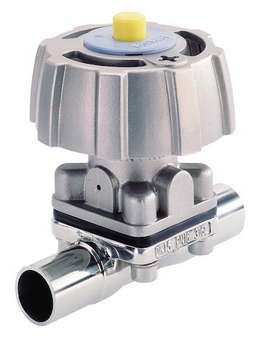

德國寶帝3233型電磁閥 寶德2通隔膜閥
緊湊型3233手動操作的隔膜閥由流量優化的鑄造不銹鋼主體和各種表面處理,隔膜和手動執行器組成。材料組合可選。隔膜既是開關元件又是密封元件。它可以很容易地更換。流量可以通過手動執行器連續調節。閥門沒有死體積,可以安裝成自排水。這使得高流量和各種應用得以實現。閥門是可高壓滅菌的。
通過膜片將流體從操作機構中分離出來
Port connection DN 4 - 50
Body material Cast stainless steel 316 L/1.4435
Actuator materials

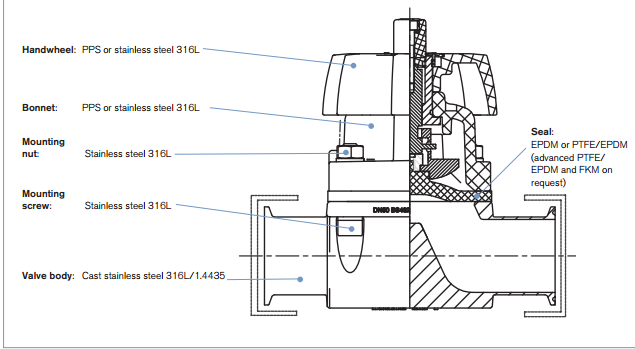

Handwheel and bonnet PPS, stainless steel
Seal materials EPDM, PTFE/EPDM (advanced PTFE/EPDM, FKM on
request)
Medium Neutral gases and liquids, high purity, sterile, aggressive
or abrasive fluids
Surface finish
internal mechanical polished
(external cast surface)
internal electro polished (external
cast surface electro polished)
(further on request)
(average surface finish)
Ra £ 0.8 μm
Ra £ 0.6 μm
Medium pressure 0 up to 10 bar
Medium temperatures
EPDM, PTFE/EPDM,
advanced PTFE/EPDM (on request)1)
FKM on request
-10 to +130°C (briefly up to +150°C for steam sterilisation)
-10 to+130°C
Ambient temperature Up to +130°C
Briefly up to +150°C
Port connections
Weld end acc.
Clamp acc.
Sterile threaded ends and
other ports
?EN ISO 1127/ISO 4200
?DIN 11850
?SMS 3008
?ASME BPE on request
?ISO 2852/SMS 3017
?DIN 32676
?BS 4825
on request
Installation
with self-draining operation
As required, preferably with actuator in upright position
see drawing p. 2
質量FDA
8 1/4” 8 13.5 1.0 10 442 147 442 148
10 3/8” 8 17.2 1.0 10 442 171 442 172
15 1/2” 15 21.3 6.0 10 442 270 442 271
20 3/4” 20 26.9 11.0 10 442 309 442 310
25 1” 25 33.7 16.0 10 442 352 442 353
32 1 1/4” 40 42.4 29.0 10 551 965 554 966
40 1 1/2” 40 48.3 29.0 10 442 410 442 411
50 2” 50 60.3 50.0 7 442 465 442 466
435240 3233-2-0-50,0-AB-VA-SA47-D051 * NO01+NO05
435241 3233-2-0-15,0-AB-VA-SA42-D050 * NO01+NO05
435242 3233-2-0-20,0-AB-VA-SA43-D050 * NO01+NO05
435243 3233-2-0-25,0-AB-VA-SA44-D050 * NO01+NO05
435244 3233-2-0-32,0-AB-VA-SA45-D050 * NO01+NO05
435245 3233-2-0-40,0-AB-VA-SA46-D050 * NO01+NO05
435246 3233-2-0-50,0-AB-VA-SA47-D050 * NO01+NO05
435259 3233-2-0-15,0-AB-VA-SD42-D051 * NO01+NO05
435260 3233-2-0-20,0-AB-VA-SD43-D051 * NO01+NO05
435261 3233-2-0-25,0-AB-VA-SD44-D051 * NO01+NO05
435262 3233-2-0-32,0-AB-VA-SD45-D051 * NO01+NO05
435263 3233-2-0-40,0-AB-VA-SD46-D051 * NO01+NO05
435264 3233-2-0-50,0-AB-VA-SD47-D051 * NO01+NO05
435265 3233-2-0-15,0-AB-VA-SD42-D050 * NO01+NO05
435266 3233-2-0-20,0-AB-VA-SD43-D050 * NO01+NO05
435267 3233-2-0-25,0-AB-VA-SD44-D050 * NO01+NO05
435268 3233-2-0-32,0-AB-VA-SD45-D050 * NO01+NO05
435269 3233-2-0-40,0-AB-VA-SD46-D050 * NO01+NO05
435270 3233-2-0-50,0-AB-VA-SD47-D050 * NO01+NO05
435283 3233-2-0-15,0-AB-VA-GM84-D051 * NO01+NO05
435284 3233-2-0-20,0-AB-VA-GM85-D051 * NO01+NO05
435285 3233-2-0-25,0-AB-VA-GM86-D051 * NO01+NO05
435286 3233-2-0-32,0-AB-VA-GM87-D051 * NO01+NO05
435287 3233-2-0-40,0-AB-VA-GM88-D051 * NO01+NO05
435288 3233-2-0-50,0-AB-VA-GM89-D051 * NO01+NO05
435289 3233-2-0-15,0-AB-VA-GM84-D050 * NO01+NO05
435290 3233-2-0-20,0-AB-VA-GM85-D050 * NO01+NO05
435291 3233-2-0-25,0-AB-VA-GM86-D050 * NO01+NO05
435292 3233-2-0-40,0-AB-VA-GM88-D050 * NO01+NO05
435293 3233-2-0-50,0-AB-VA-GM89-D050 * NO01+NO05
436473 SE32-0000-0000-R3-A-S1-2-BCV/DC-Z
436474 SE32-0000-0000-R3-A-S1-A-BCV/DC-4
436475 SE32-0000-0000-R3-A-S1-6-BCV/DC-W
436488 1501-0000-PP-RA50-0
436489 1501-0000-PE-RA50-0
436501 8400-GS84-VAFF-T2-A-S1-2-BCV/DC-Z
436503 8400-GS84-VAFF-T2-A-S1-6-BCV/DC-W
