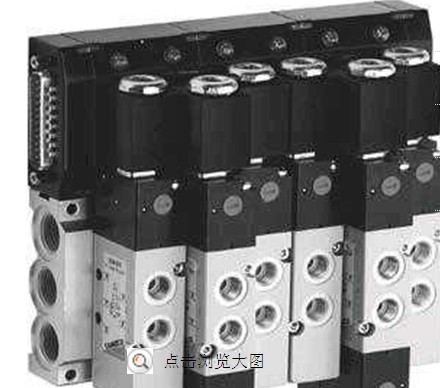

意大利康茂盛閥島,CAMOZZI閥島
上海乾拓貿易有限公司
聯系人:楊江玲
企業QQ:2880626083
手 機:18917074297(微信)
電 話:021-39529830-8012
郵箱;18917074297@163.com
地址:上海市嘉定區江橋嘉涌路6號樓713室
簡述:
by means of a Sub-D adapter or through an integrated node in the island.
The typical Series F single modularity allows the installation of
a valve island which is characterized by small dimensions,
up to 24 solenoids on 24 valve positions, even in the Fieldbus version.
high flow and reduced weight. The reduced dimensions,
The Multipole version of Series F valve island can be easily
integrated with the accessories of the new Series CX multiserial module,
thus connecting to the different serial nets provided.
Multipole integrated electrical connection (PNP)
interface with all major serial communication protocols.
The use of technopolymer in this Series has allowed to realize
Valve functions: 2x2/2; 2x3/2; 5/2; 5/3 CC It can
It is also possible to manage a standard multipole island
特點:
code indicated on the lable of the product.
functions make Series F a highly innovative product which is suitable
(Mod. 2939): see the section 2/9.05.
its flexibility during the assembly as well as the wide range of valve
Manuals, instruction sheets and configuration files are available
on the site http://catalogue.camozzi.com or by means of the QR
for several application requirements. Usable silencers
Protocols: PROFIBUS-DP, CANopen, DeviceNet, EtherNet/IP, PROFINET, EtherCAT
from 2 to 24 ? Manual override: Push or Push & Turn ? Available
? Valve size: 12 and 14 mm ? Modularity: single ? Valve positions:
技術參數:
and 4, size 1 (12 mm) = tube ?4; ?6 Inlets 2 and 4, size 2 (14 mm)
12/14, size 1 and 2 = tube ?6 Exhausts 3/5, size 1 and 2 = tube ?8;
= tube ?4; ?6; ?8 Supply 1, size 1 and 2 = tube ?8; ?10 Servo pilot
Materials aluminium spool HNBR seals other seals in NBR brass
?10 Exhausts 82/84, size 1 and 2 = tube ?6 Temperature 0 ÷ 50°C
1x2/2 NC + 1x2/2 NO 2x3/2 NO 2x3/2 NC 1x3/2 NC + 1x3/2 NO
cartridges technopolymer body and end covers Connections Inlets 2
PNEUMATIC SECTION Valve construction spool with seals Valve
functions 5/2 monostable and bistable 5/3 CC 2x2/2 NO 2x2/2 NC
